Facing Lathe NILES DP1/S3
Price on request
Facing lathe NILES DP1/S3 — swing 1,600mm, 9,000mm between centers, 40,000kg workpiece capacity. Almost unused, mechanically complete.

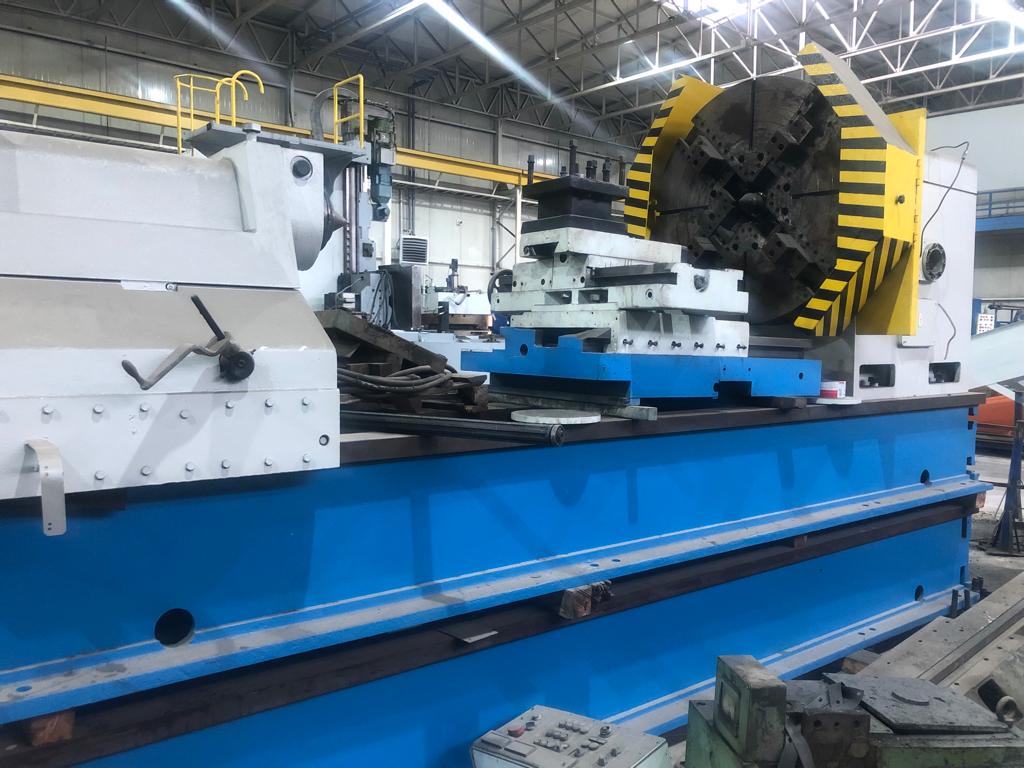

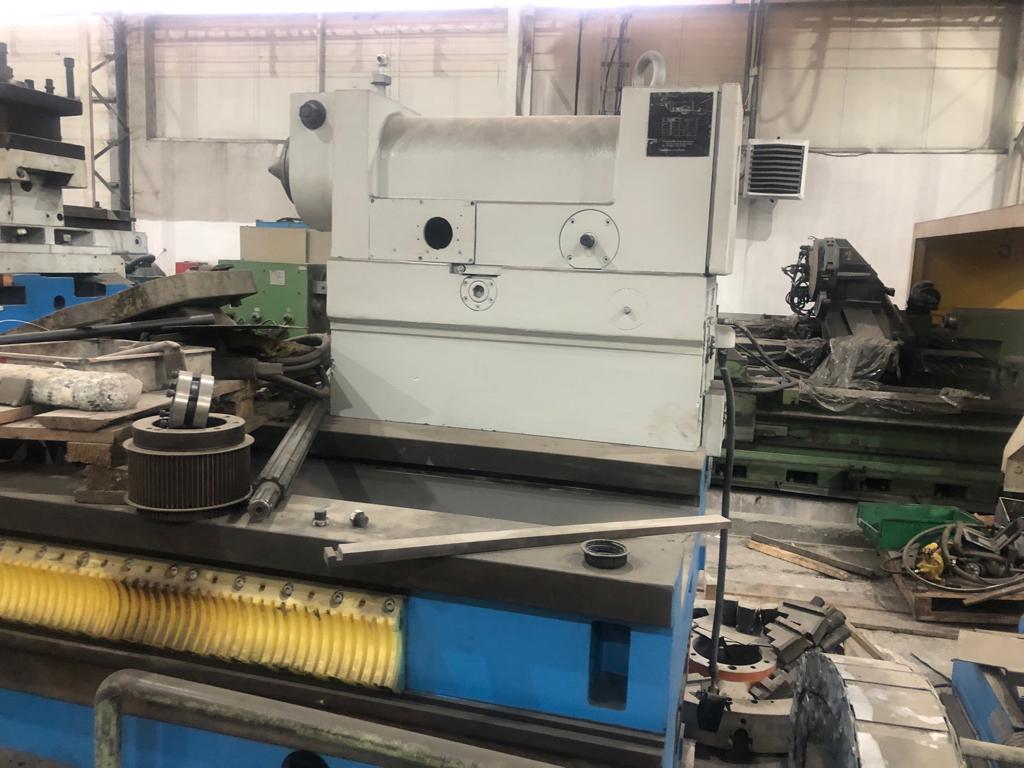

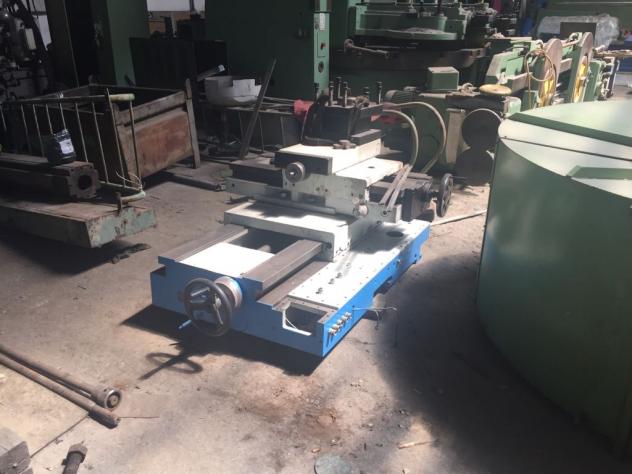

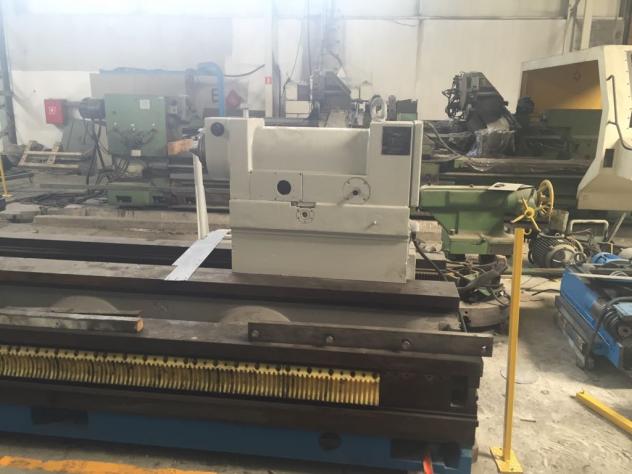

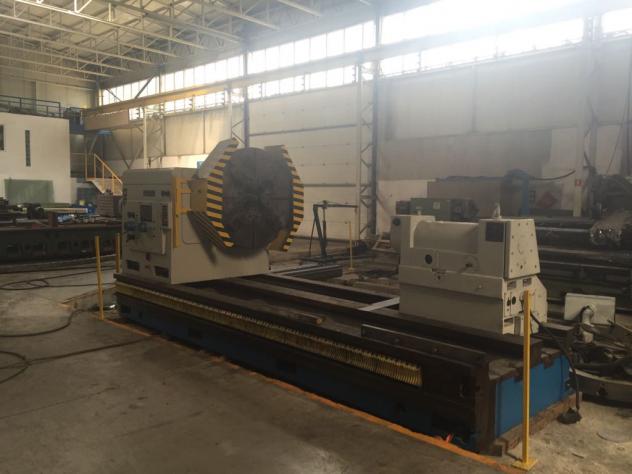

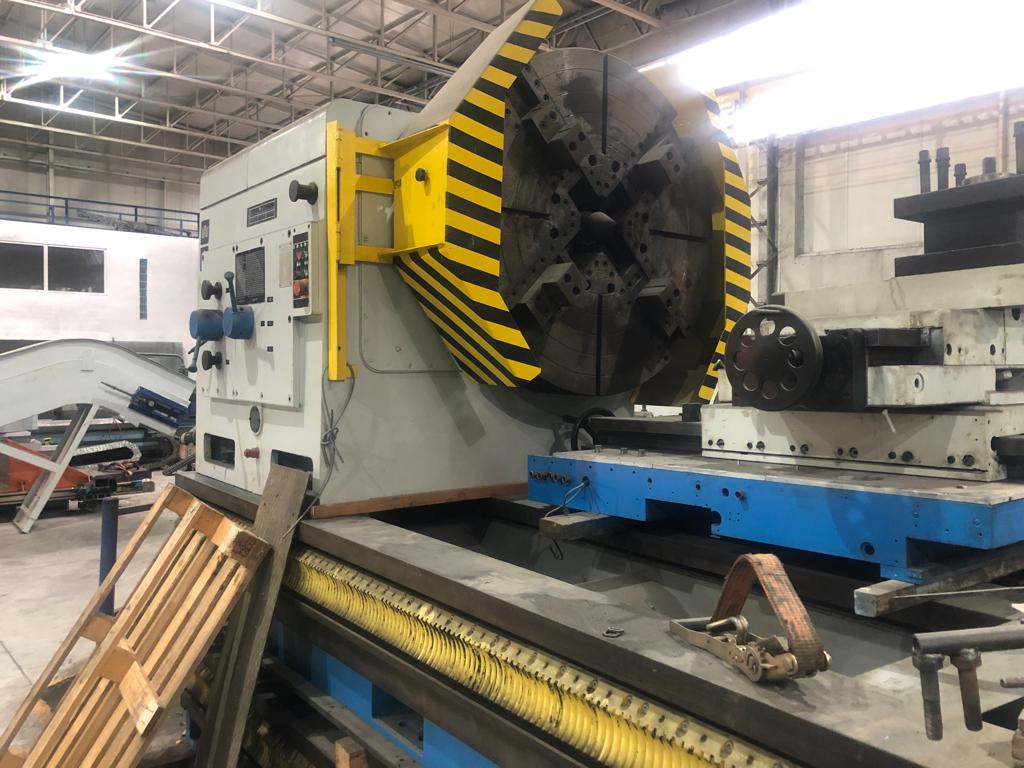

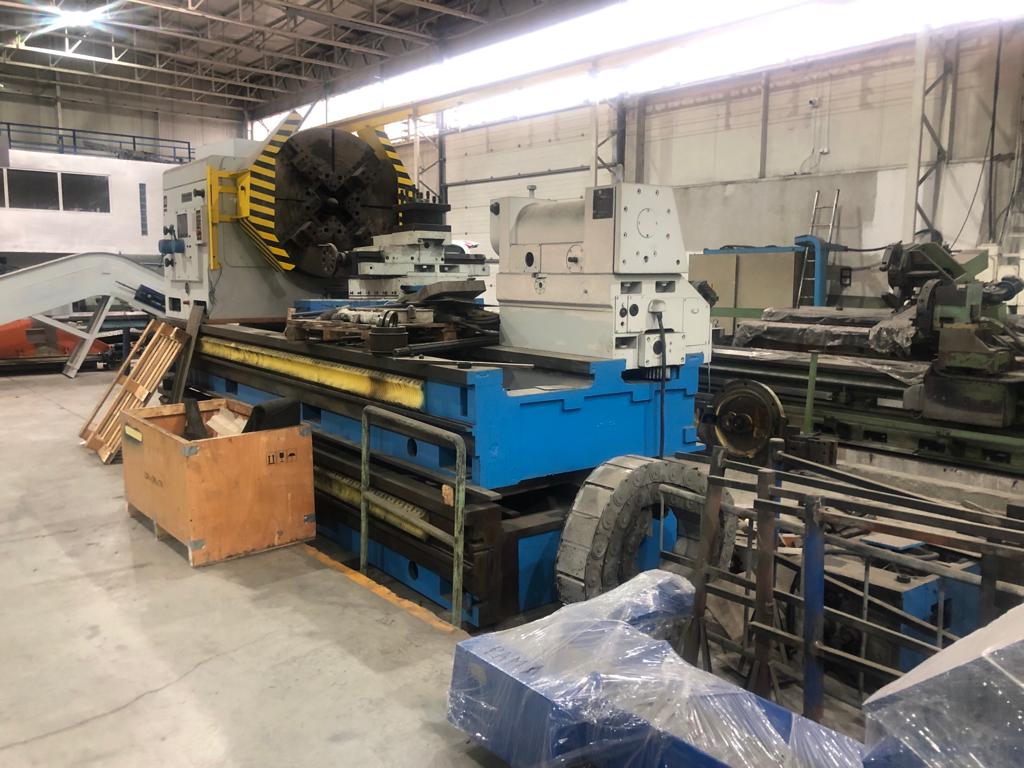

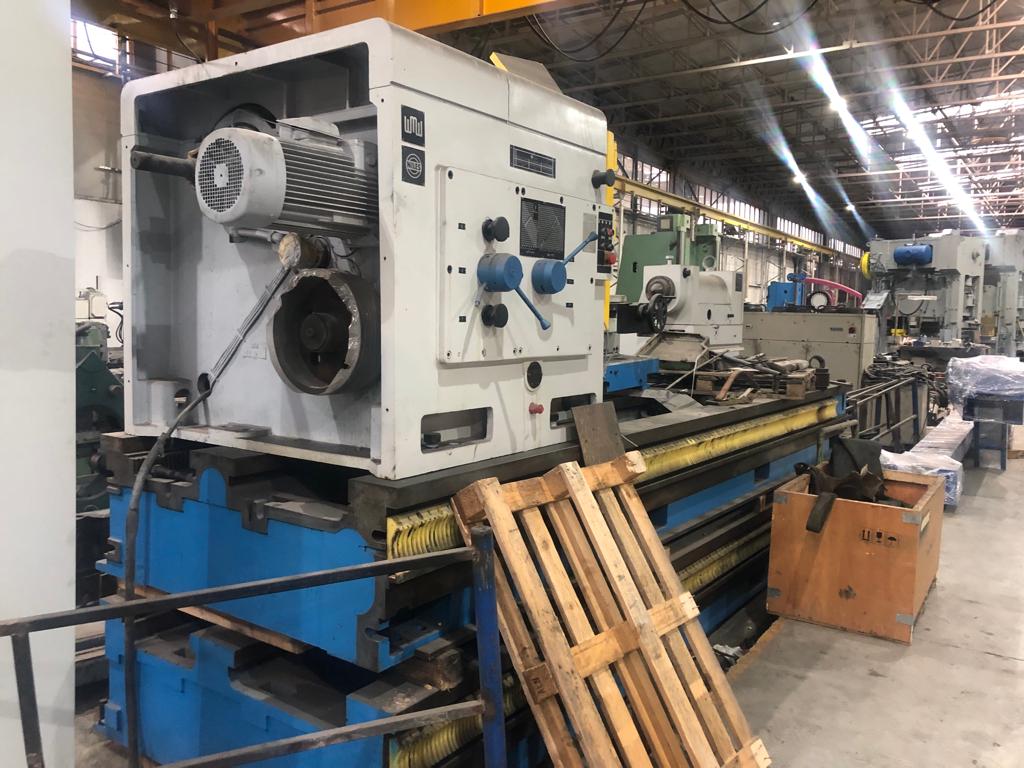

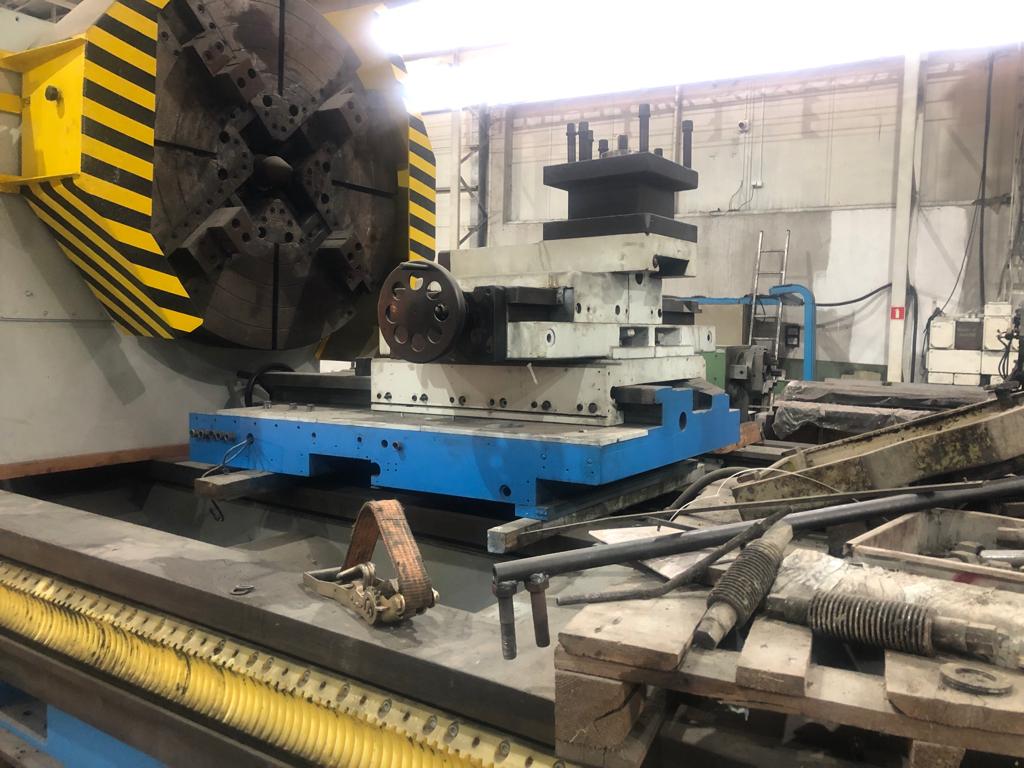

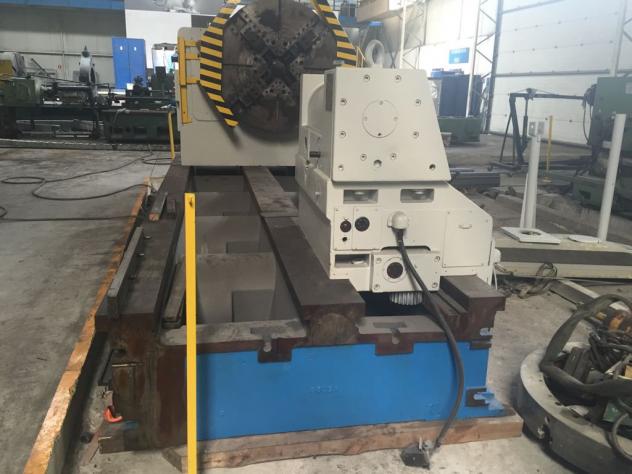

Facing lathe NILES DP1/S3, manufactured in 1988 by NILES in Germany. The machine is almost not used and mechanically complete, however it requires the installation of new electrics or controls. With a maximum swing of 1,600 mm over the bed and 9,000 mm between centers, this heavy-duty facing lathe is ideal for machining very large workpieces up to 40,000 kg.
Specifications

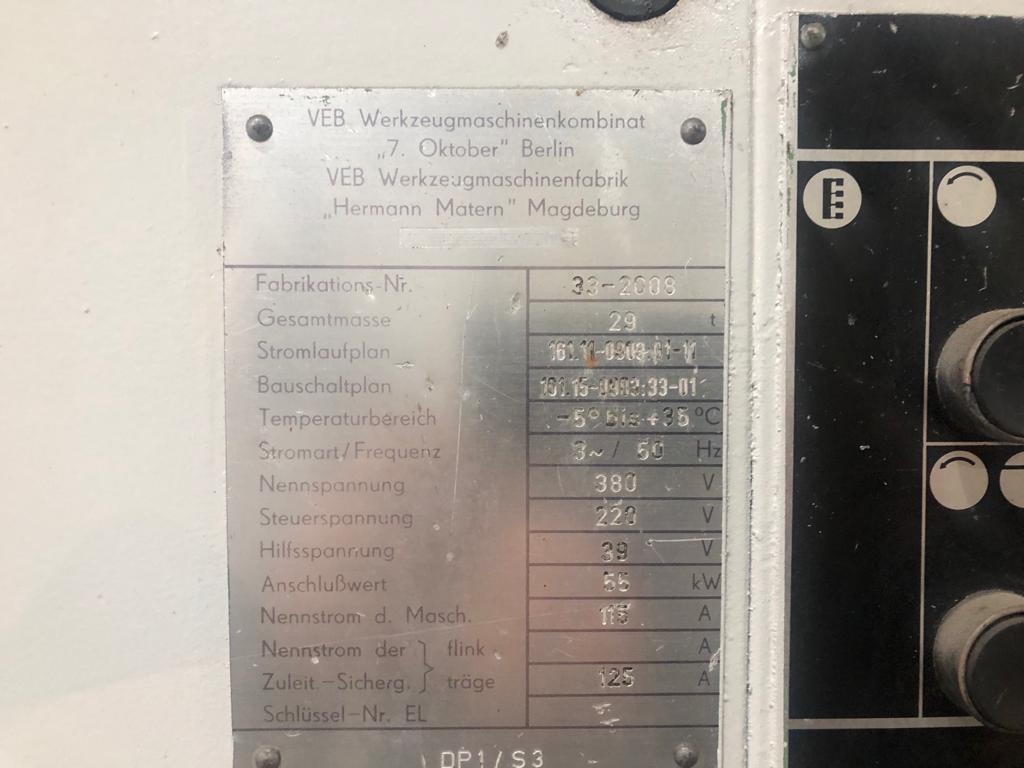

Year of manufacture: 1988 Manufacturer: NILES Origin: Made in Germany Condition: Almost unused, mechanically complete — requires installation of new electrics or controls Technical Data: - Height of center over bed: 800 mm - Max. processing diameter over bed: 1,600 mm - Max. processing diameter over support: 1,250 mm - Max. length of workpiece: 9,000 mm - Min. work-piece diameter: 250 mm - Max. work-piece weight: 40,000 kg - Max. work-piece diameter: 1,250 mm - Internal spindle cone (1:10): 120 mm Electrical Data: - Connected load: 55 kW - Nominal voltage: 380 V - Control voltage: 220 V - Auxiliary voltage: 39 V - Power supply: 3 ~ / 50 Hz - Nominal current: 115 A - Total weight: 29 t - Temperature range: -5°C to +35°C
